E-Roof
E-Roof
Insulated roof sandwich panel made of two profiled metal sheets with rigid PUR or PIR foam core. Self-supporting solution for industrial and modular roofs. Designed for effective water drainage and thermal insulation. Quick to install, durable, and low maintenance. Produced according to EN 14509.
Insulated roof sandwich panel made of two profiled metal sheets with rigid PUR or PIR foam core. Self-supporting solution for industrial and modular roofs. Designed for effective water drainage and thermal insulation. Quick to install, durable, and low maintenance. Produced according to EN 14509.
Thickness (mm): 30-120
Width (mm): 1000
Length (m): 2,50 - 17,00
RAL 9002
RAL 9006
RAL 7015
RAL 8019
RAL 6005
RAL 3009
Contact Us
Profiles
Profiles

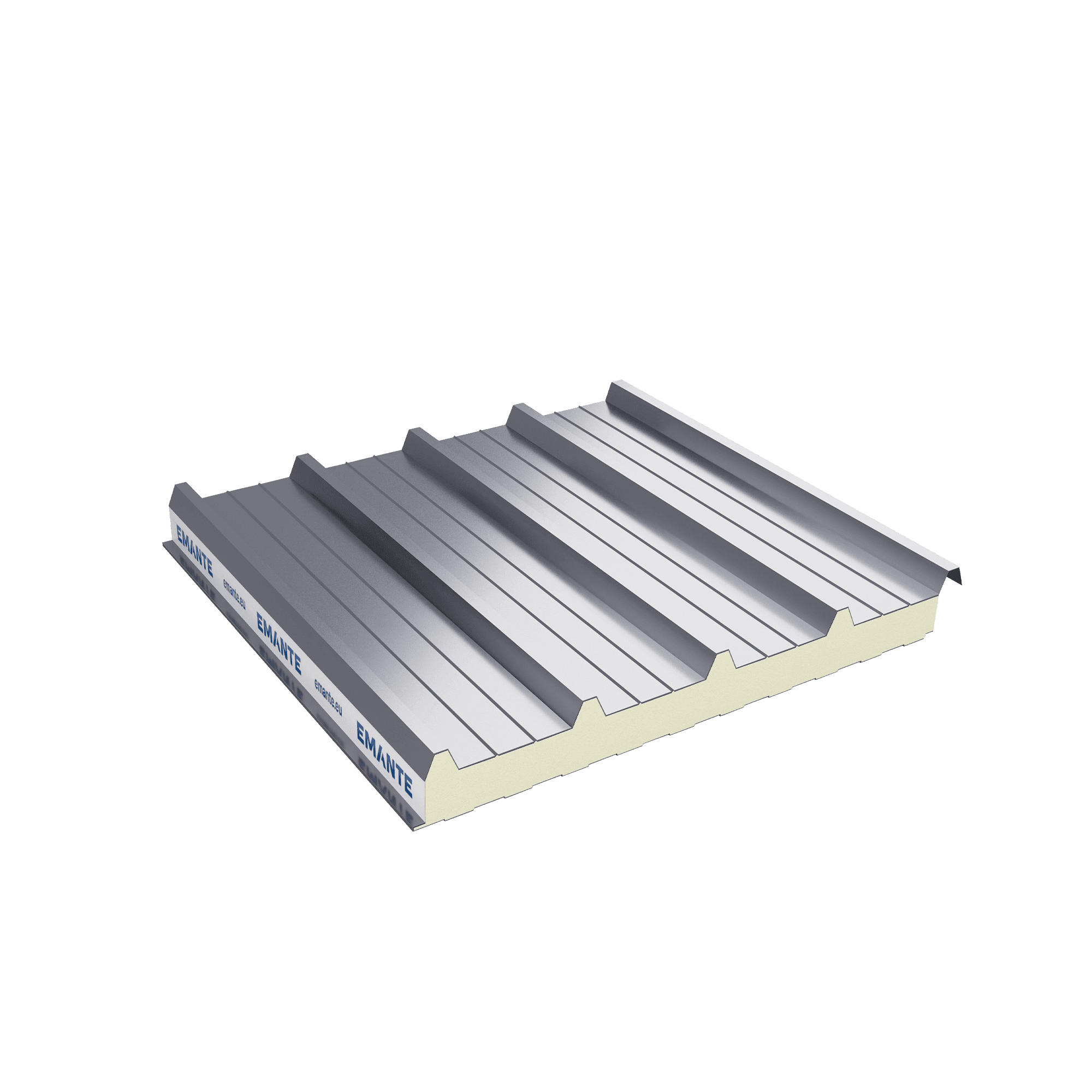

With 5 Ridges

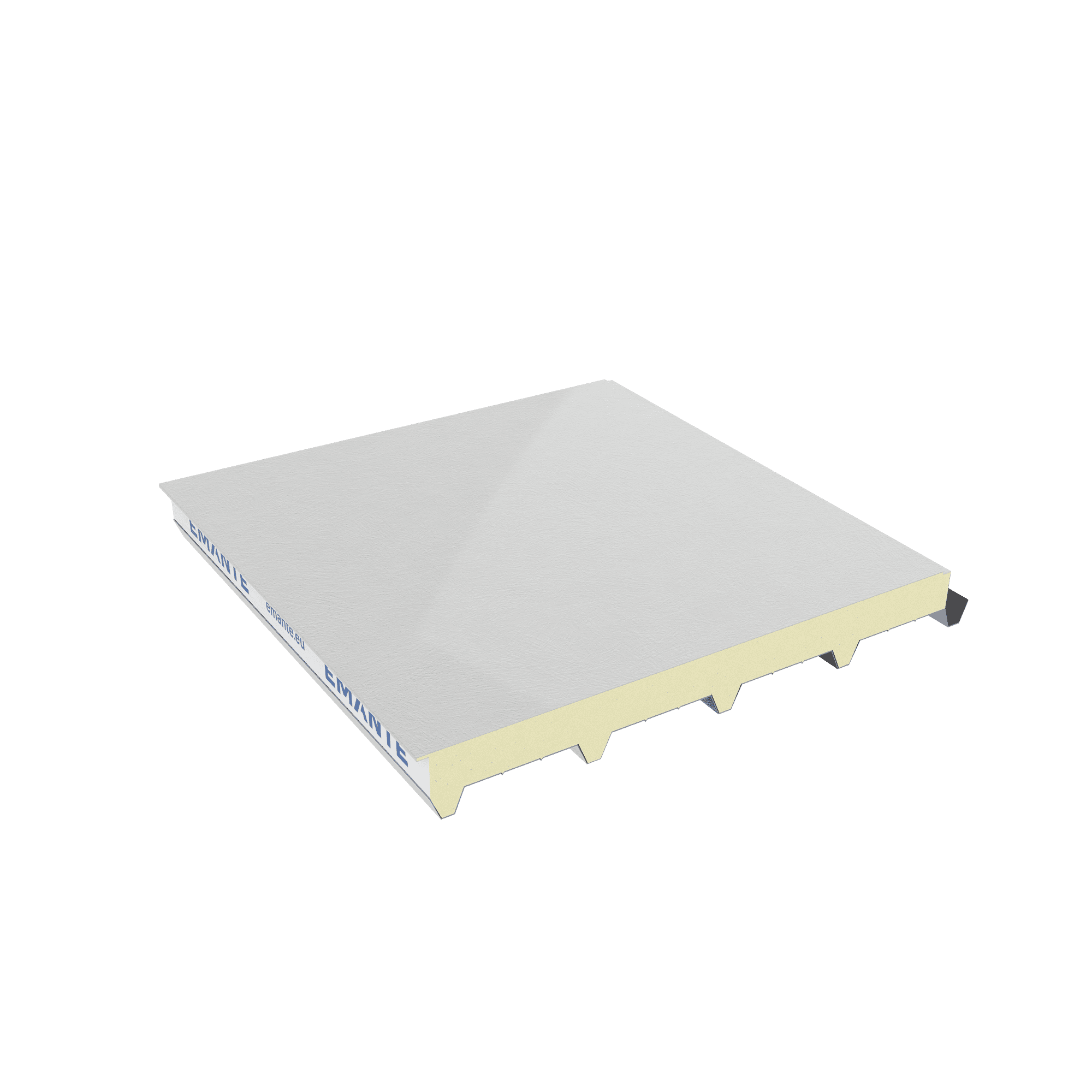

5 Ridges with Fiberglass
PVC
Technical information
Static properties
One-time support conditions
Thickness (mm)
Weight
Uniformly distributed loads [kN/m²]
Span L [m]
Span L [m]
1.50
2.00
2.50
3.00
3.50
4.00
30
→
2.90
1.65
1.00
0.70
0.55
0.45
40
→
3.20
2.40
1.50
1.00
0.80
0.70
50
→
4.40
2.90
2.20
1.80
1.30
0.95
60
→
5.00
3.60
2.60
2.00
1.60
1.15
80
→
5.60
3.85
3.20
2.90
2.20
1.65
100
→
7.00
4.20
3.60
3.15
2.80
2.30
120
→
8.20
5.70
4.40
3.90
3.20
2.80
Multiple support conditions
Thickness (mm)
Weight
Uniformly distributed loads [kN/m²]
Span L [m]
Span L [m]
1.50
2.00
2.50
3.00
3.50
4.00
30
→
2.90
1.65
1.00
0.80
0.65
0.50
40
→
3.20
2.40
1.50
1.20
0.90
0.80
50
→
4.40
2.90
2.20
2.00
1.45
1.05
60
→
5.00
3.60
2.60
2.20
1.95
1.25
80
→
5.60
3.85
3.20
3.00
2.35
1.85
100
→
7.00
4.20
3.60
3.25
2.90
2.45
120
→
8.20
5.70
4.40
4.20
3.50
3.00
Thermal properties
Thickness
mm
30
40
50
60
80
100
120
Thermal transmittance,
U (EN 14509 A.10)
U (EN 14509 A.10)
W/m²K
0.71
0.53
0.42
0.34
0.26
0.21
0.16
