E-Wall

E-Wall

Insulated sandwich panel made of two profiled metal sheets filled with rigid PUR or PIR foam. Self-supporting solution for walls or façades, ideal for prefabricated and modular buildings. Available with flat or profiled outer surface. Versatile, easy to install and maintain. Produced according to EN 14509.

Insulated sandwich panel made of two profiled metal sheets filled with rigid PUR or PIR foam. Self-supporting solution for walls or façades, ideal for prefabricated and modular buildings. Available with flat or profiled outer surface. Versatile, easy to install and maintain. Produced according to EN 14509.

Thickness (mm): 30-120

Width (mm): 1000

Length (m): 2,50 - 17,00

RAL 9010

RAL 9001

RAL 9002

RAL 9006

RAL 9007

RAL 7015

RAL 8019

RAL 2002

RAL 3020

RAL 6021

RAL 6005

RAL 5010

3D WOOD

3D STONE

For more details

check our catalog

or

Contact Us

Profiles sandwich panel

Profiles sandwich panel

E-Wall standard sandwich panel with fine vertical rib profile in grey metal finish

Standard sandwich panel

E-Wall special sandwich panel with bold trapezoidal rib profile in grey metal finish

Special sandwich panel

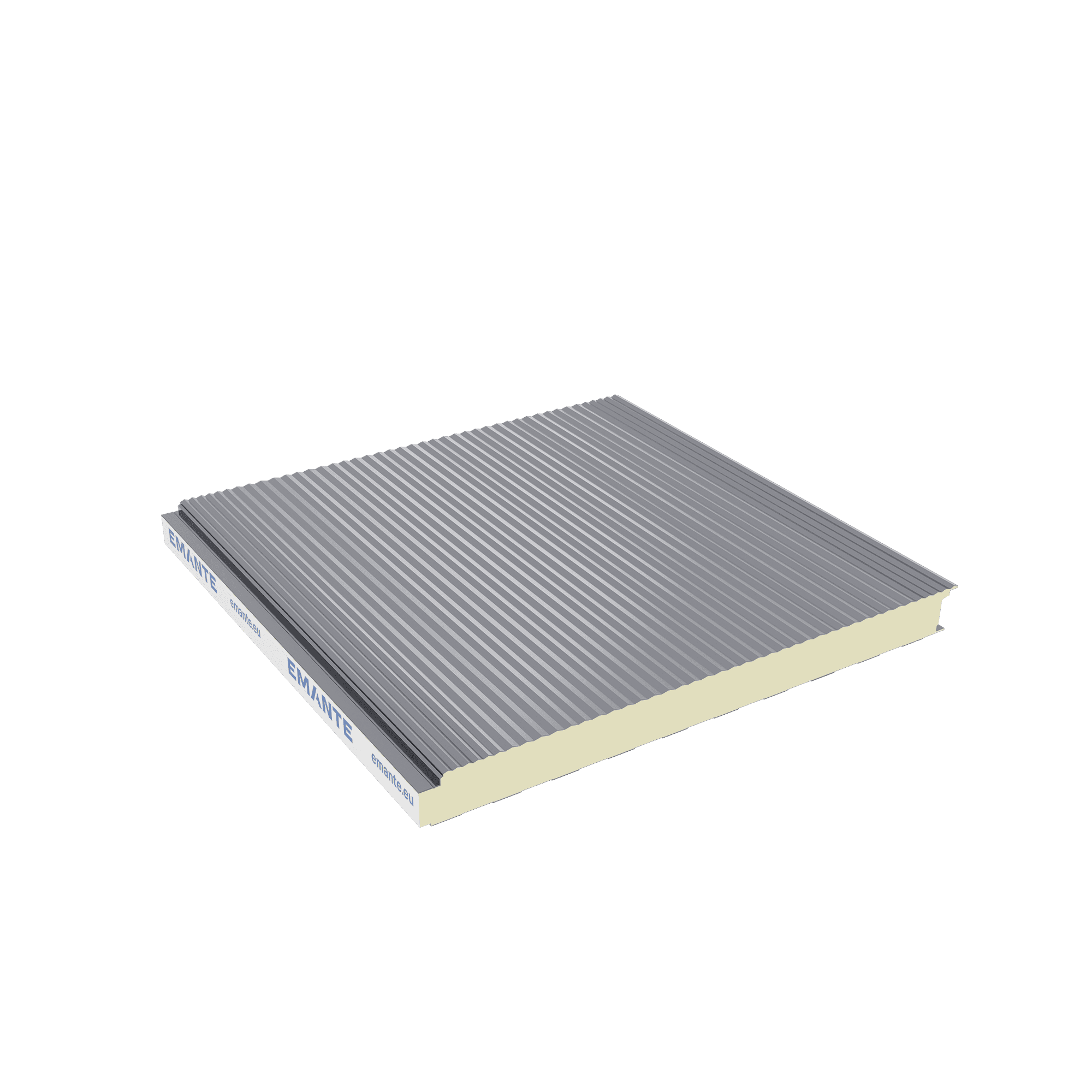

E-Wall microline sandwich panel with fine micro-ribbed surface texture in grey

Microline sandwich panel

E-Wall flat sandwich panel with smooth, ribless grey metal surface

Flat sandwich panel

Close-up of E-Wall special sandwich panel joint showing the hidden screw fastening system

Special sandwich panel
Hidden Screw

Special sandwich panel
Hidden Screw

Close-up of E-Wall special sandwich panel joint showing the hidden screw fastening system

Special sandwich panel
Hidden Screw

Special sandwich panel
Hidden Screw

Rendered industrial warehouse building clad in grey E-Wall insulated wall panels
Rendered industrial warehouse building clad in grey E-Wall insulated wall panels
Technical information
Static Properties
Single support conditions
Thickness (mm)
Weight
Uniform distributed load
Span L [m]
1.50
2.00
3.00
2.50
3.50
30
→
1.30
1.00
0.80
0.55
0.40
40
→
1.60
1.35
1.00
0.70
0.50
50
→
1.75
1.50
1.25
0.80
0.55
60
→
1.85
1.65
1.30
1.20
0.80
80
→
1.95
1.70
1.50
1.30
1.20
100
→
2.25
1.75
1.60
1.45
1.05
120
→
3.20
2.60
2.20
1.80
1.20
150
3.25
2.65
2.25
1.90
1.25
Multiple support conditions
Thickness (mm)
Weight
Uniform distributed load [kN/m²]
Span L [m]
1.50
2.00
2.50
3.00
3.50
4.00
5.00
30
→
1.30
1.00
0.80
0.65
0.50
0.33
0.25
40
→
1.60
1.35
1.00
0.74
0.60
0.43
0.34
50
→
1.75
1.50
1.30
1.25
0.90
0.80
0.70
60
→
1.85
1.65
1.30
1.20
0.90
0.80
0.70
80
→
1.95
1.70
1.50
1.35
1.00
0.90
0.85
100
→
2.25
1.75
1.60
1.55
1.45
1.15
1.10
120
→
3.20
2.60
2.20
1.80
1.50
1.35
1.20
150
3.25
2.65
2.25
2.00
1.55
1.45
1.32
Thermal Properties
Thickness
mm
30
40
50
60
80
100
120
Thermal Transmission,
U (EN 14509 A.10)
W/m²K
0.71
0.52
0.42
0.35
0.26
0.20
0.16
